Position: Special Purpose Vehicles»Tank Series»Pressure Vessels

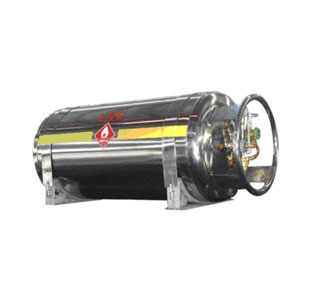

450L Cylinders of Liquefied Natural Gas

ItemSpecification
MaterialsS30408/06Cr19Ni10
Design pressure1.59 MPa
Design temperature-196℃
Volume405L
Curb weight330 kg
Loading weight170L (base on LNG density)
Total weight 500kg
Dimensions (L*W*H)1990*700*750mm
Tank shell diameter725mm
 Tank head/shell thickness8/6mm
