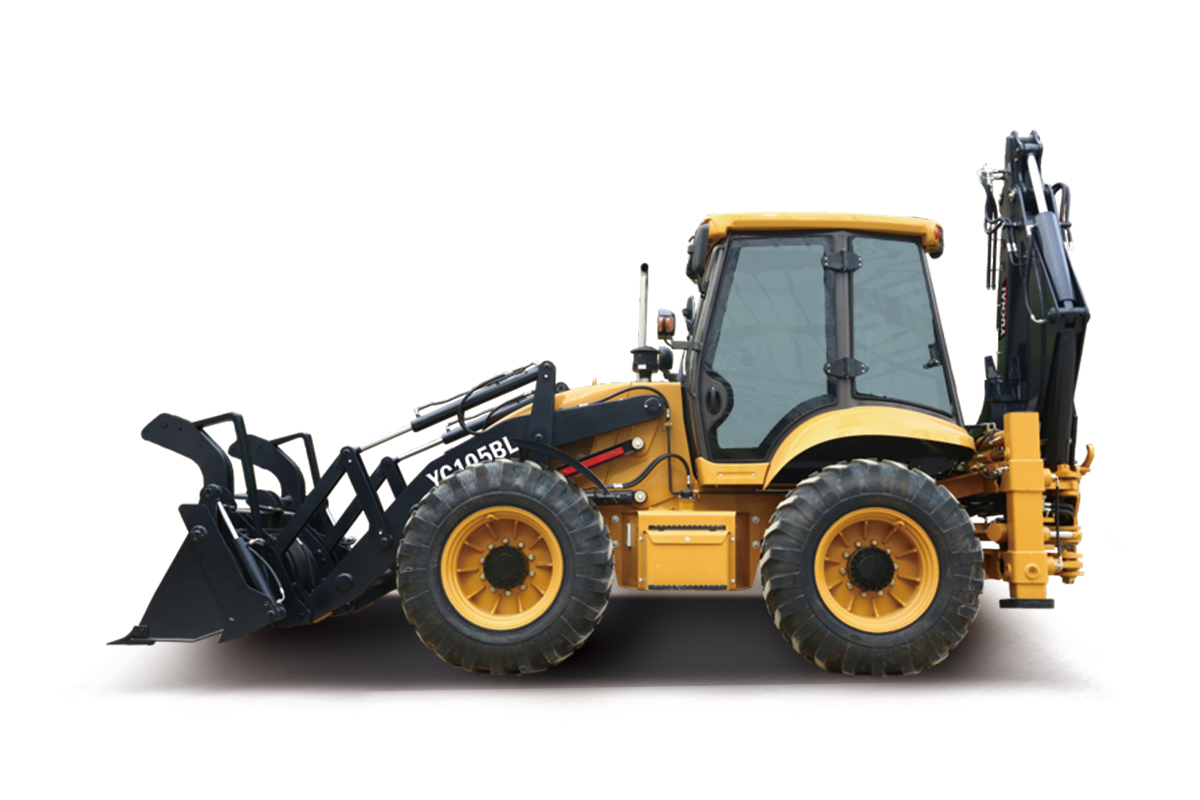

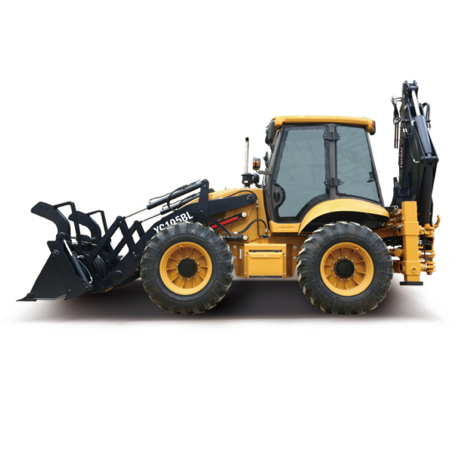

The integral frame,provides excellent stabilityand is more suitable for excavation work.
The excavating working device is side shifttype,
high strength and good structural stability;
the loading end working device adopts eight-barlinkage mechanism.
Specifications
Features
| Manufacturer/Model | YC105BL | |
| Basic Parameters | ||
| Operating weight | kg | 10500 |
| Rated load | kg | 2500 |
| Bucket capacity | m³ | 1.2 |
| Max. hauling force | kn | 86 |
| Max. digging force | kn | 47 |
| Max. gradeability | ° | 26 |
| Max. dumping height | mm | 3050 |
| Dimension | mm | 6450*2530*3120 |
| Engine | ||
| Model | Yuchai | |
| Rated power | kw | 75 |
| Rpm | r/min | 2200 |
| Transmission System | ||
| Torque converter model | YJ320 | |
| Gearbox | Hydraulic shifting through mechanical control | |
| Gears | F4/R4 | |
| Max. speed | km/h | 36 |
| Drive axle | Carraro | |
| Tire specification | 16.9-28 | |
| Steering System | ||
| Steering pressure | Mpa | 14 |
| Min. turning radius | mm | 6950 |
| Hydraulic System | ||
| Operating pressure | Mpa | 20 |
| Digging pressure | Mpa | 20 |
| Control method | Hydraulic pilot | |
| Excavation device | ||
| Bucket capacity | m³ | 0.3 |
| Max. dumping height | mm | 4050 |
| Max. digging depth | mm | 3820 |
| Max. digging radius | mm | 6528 |
| Slewing angle | ° | 180 |
| Digging force of bucket | kn | 50 |
| Digging force of arm | kn | 31 |
