1.Excellent performance
2.Low fuel consumption
3.High efficiency

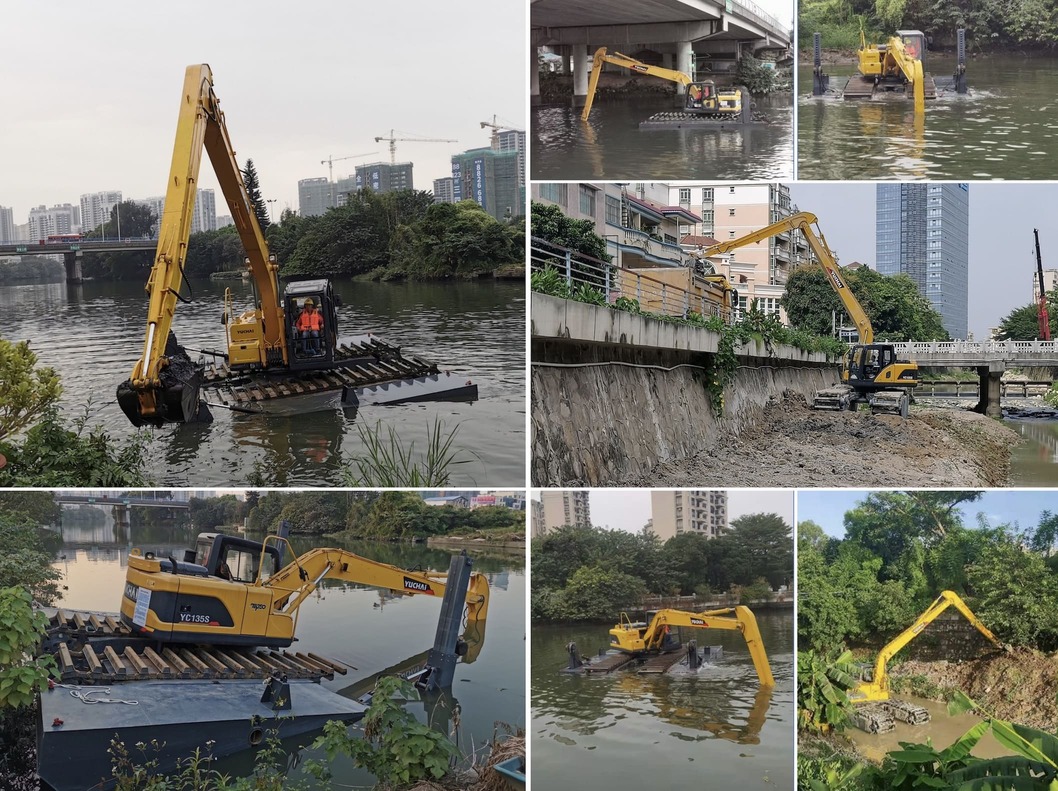

4.Suitable for working conditions ofswampland，fishpond，canal, river etc.
Specifications
Features
| YC135S | ||
| Basic parameter | ||
| Machine weightl | kg | 18600 |
| Engine power | kW/rap | 86 |
| Standard bucket capacity | m³ | 0.52 |
| Dimensions | ||
| Length of Boom | mm | 4600 |
| Length of Stick | mm | 2550 |
| Length of Pontoon | mm | 7000 |
| Width of Pontoon | mm | 1250 |
| Height of Pontoon | mm | 1600 |
| Width of Chassis | mm | 3700 |
| Operating parameters | ||
| Max.wading depth | mm | 1600 |
| Work efficiency | m³/h | 100 |
| Max.digging height | mm | 9130 |
| Max.dumping height | mm | 6740 |
| Max.digging depth | mm | 4410 |
| Max.Vertical digging depth | mm | 3145 |
| Max.digging radius | mm | 8065 |
| Max.digging radius on ground level | mm | 7720 |
