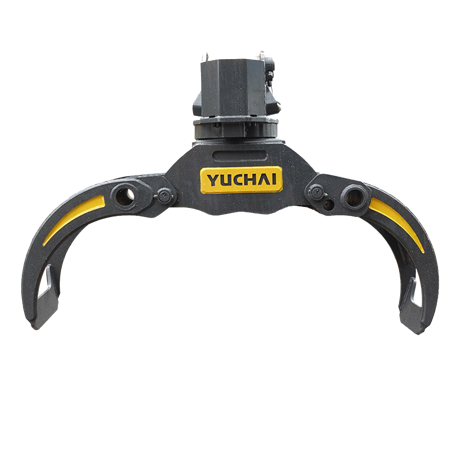

Yuchai Grapple FC90

Features:Using HG70D high-strength steel plate, light weight and wear-resistant; The pin shaft is made of 42CrMo alloy steel with built-in oil channel,which has high strength and good toughness.
Using the vertical car motor rotation system, 360°rotation, with braking function.The oil cylinder adopts honing tube, which can bear higher pressure and have a longer life



Model Unit FC90 FC160
Weight kg 450 650
Maximum clamping weigh kg 1500 2500
Minimum arms round mm 1670 1835
Min. grabbing diameter mm 650 700
The largest arms round mm 95 120
The height of the hold mm 985 1080
Height at opening mm 1240 1350
Clip blade width lon 510 467
Suitable Excavator ton 7~10 12~16
