1.Structural Reliability
2.Excellent Performance
3.Fuel saving and high efficiency
4.Brand new large cabin
5.Comfortable driving experience
6.Convenient maintenance
Specifications
Features

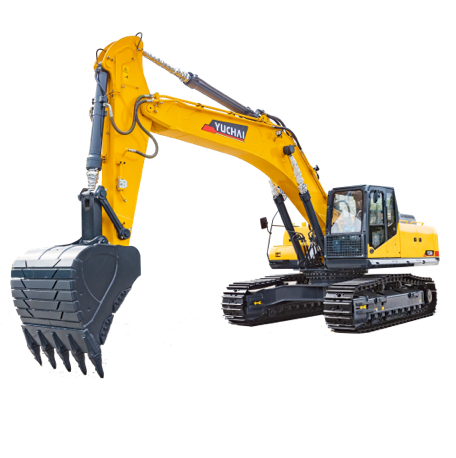

| Item | YC380 | |
| Operating weight | kg | 37300 |
| (SAE)Rated bucket capacity | m³ | 1.8 |
| Engine | ||
| Model | Cummins QSL 9 | |
| Rated Power | kW/rpm | 232/1900 |
| Max. Torque | 1343/1300 | |
| Hydraulic System | ||
| Operating Pressure | MPa | 32.3/34.3 |
| Max. Flow Rate | L/min | 2×320 |
| Working Performance | ||
| Slewing Speed | rpm | 9.4 |
| Travel Speed (High/Low) | km/h | 5.5/3.3 |
| Max. Digging Force(Bucket) | KN | 240 |
| Max. Digging Force (Arm) | KN | 214 |
| Gradeability | % | 70 |
| Max.Traction Force | KN | 289 |
| Travel Device | ||
| Track Length(K) | mm | 4962 |
| J Wheel base oftrack shoe | mm | 4050 |
| M Track Gauge | mm | 2680 |
| N Track Shoe Width | mm | 600 |
| Ground Pressure | kgf/cm² | 0.7 |
| H Minimum Ground Clearance (H) | mm | 471 |
| Tank Capacity | ||
| Fuel Tank | L | 650 |
| Hydraulic Tank | L | 350 |
| Dimensions | ||
| A Overall Length | mm | 11280 |
| B Overall Width | mm | 3280 |
| C Overall Height | mm | 3560 |
| F Counterweight Ground Clearance | mm | 1183 |
| Rear Length | mm | 3451 |
| D Upper Width | mm | 3155 |
| E Cab Height | mm | 3172 |
| Rear Swing Radius | mm | 3505 |
| Boom Length Standard | mm | 6470 |
| Arm Length Standard | mm | 2600 |
| Arm Length Option | mm | 2800 |
| A Max. Digging Reach | mm | 10546 |
| A' Ground Max. Digging Distance | mm | 10349 |
| B Max. Digging Depth | mm | 5884 |
| B' Max. Effective Digging Depth | mm | 5707 |
| C Max. Vertical Digging Depth | mm | 4021 |
| D Max. Digging Height | mm | 11110 |
| E Max. Dumping Height | mm | 7900 |
| F Minimum Swing Radius | mm | 3514 |
