Position： Construction Machinery»Excavator

YC80

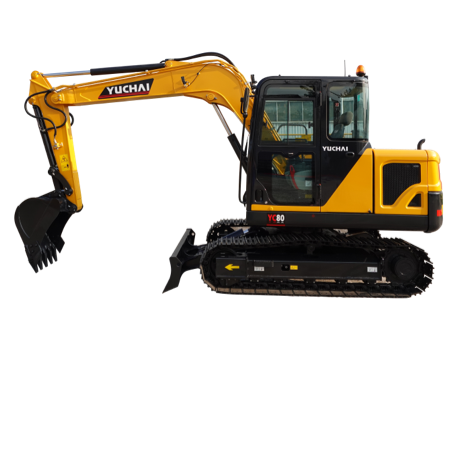

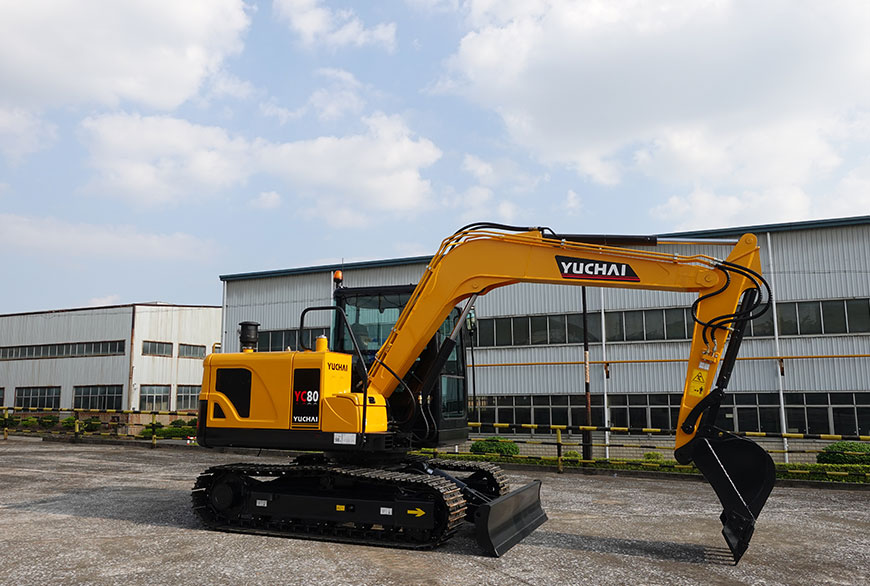

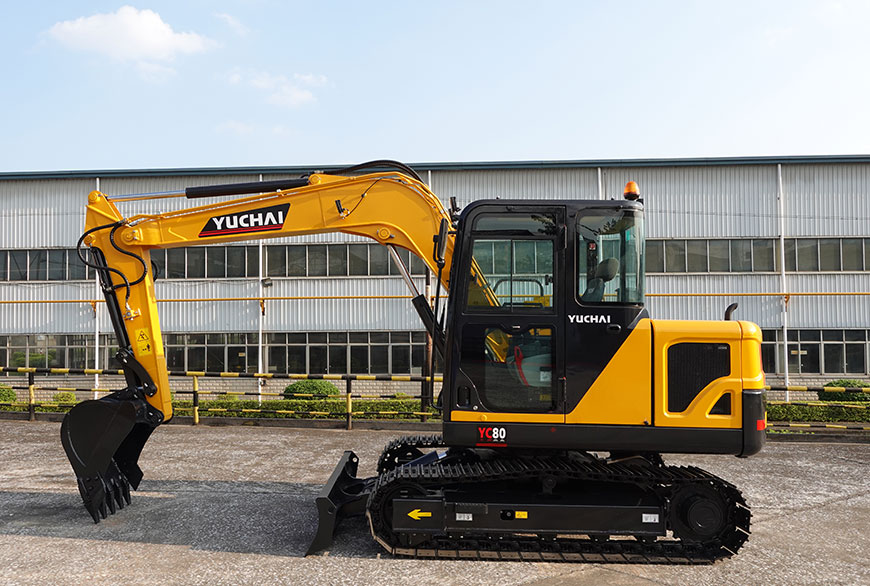

Yuchai YC80 small excavator

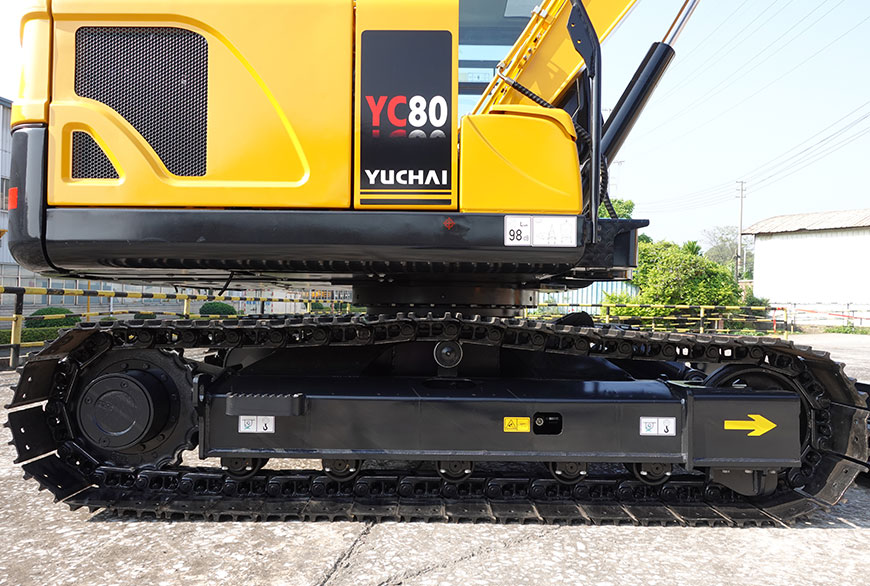

1.Structural Reliability

2.Excellent Performance

3.Fuel saving and high efficiency

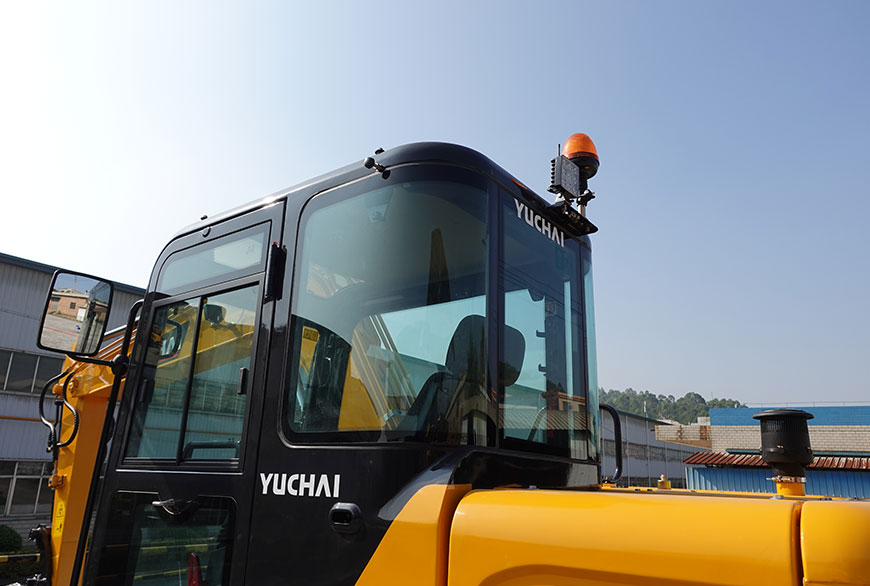

4.Brand new large cabin

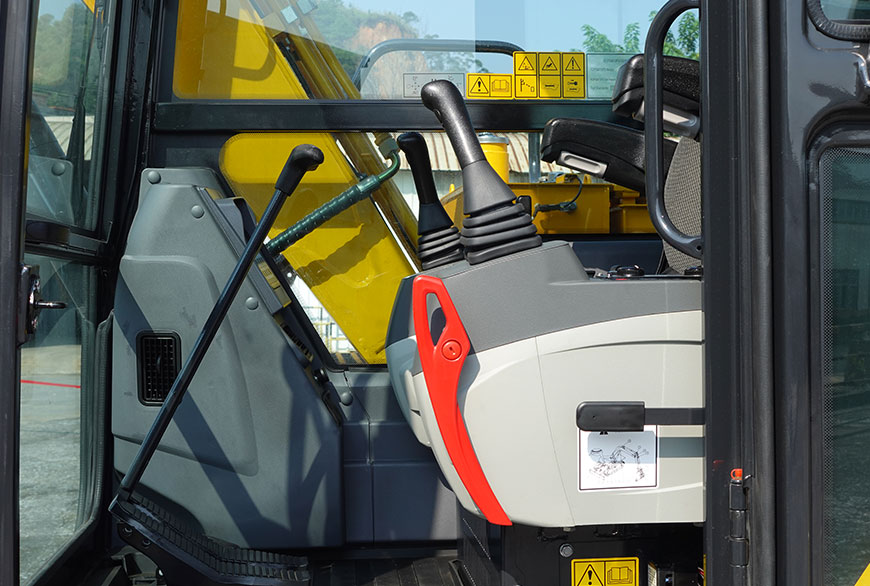

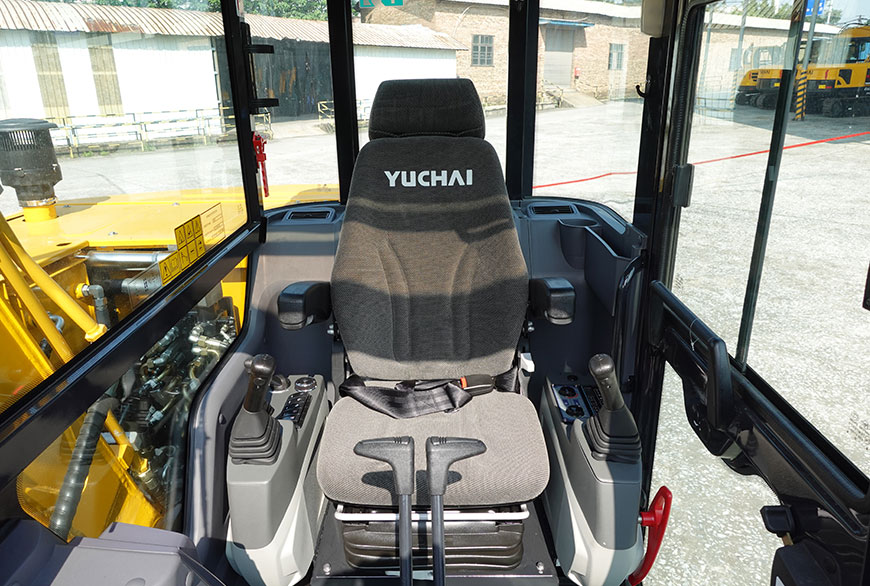

5.Comfortable driving experience

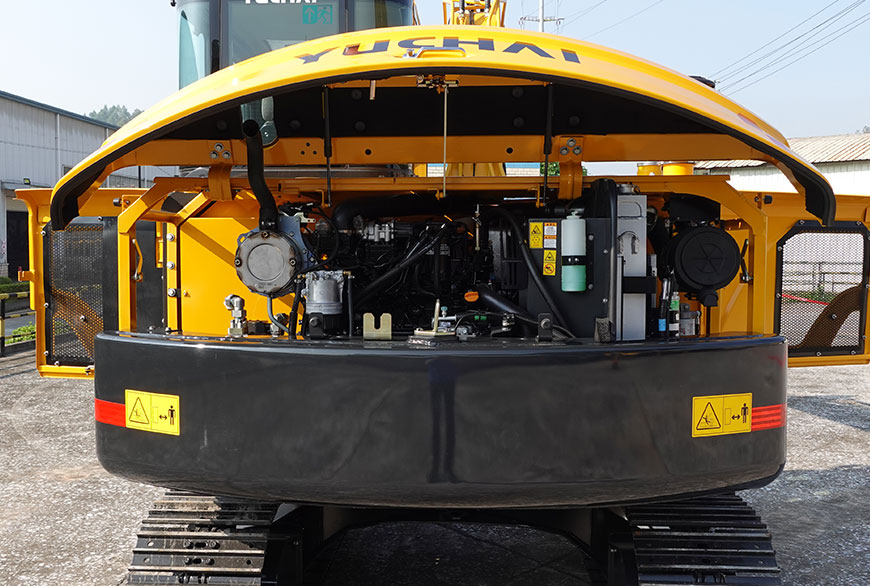

6.Convenient maintenance

Specifications

Features

Excavator Model YC80
Basic parameter
Machine weight kg 7800
Bucket capacity m³ 0.26
Width of bucket mm 845
Performance parameter
Engine model Yanmar 4TNV99 / 4TNV98C (EuroV)
Engine power kW/rpm 44.4/2100 / 42.4/2000
Max. Gradeability 35°
Max. digging force of arm kN 38
Max. digging force of bucket kN 56
Traveling speed km/h 3.9/2.6
Max. hauling force kN 68
Slewing speed of platform rpm 9~13
Operating parameter
Max. digging height mm 7112
Max. digging depth mm 4022
Max. digging radius mm 6390
Max. digging radius on ground level mm 6248
Max. dumping height mm 5055
Min. slewing radius mm 1881
Max. vertical digging depth mm 3515
Max. dozer balde heigh mm
Mzx. dozer blade depth mm
Transportation dimension
Overall length mm 6215
Overall width mm 2260
Overall height mm 2705
Other Parameter
Width of undercarriage mm 2150
Length of track mm 2783
Width of track mm 450
Height between undercarriage and ground mm 380
Height between platform and ground mm 790
Platform tail turning radius mm 1881
Length to center of rollers mm 2200
Fuel tank capacity L 151
Hydraulic oil tank capacity L 125
Track gauge mm 2200
Working Pressure Mpa 27.5
Ground Contact Pressure kPa
Arm length mm 1650
Boom length mm 3710
Steering head angle °
Flow rate L/Min 168+17.6
