Position： Construction Machinery»Excavator

YC60

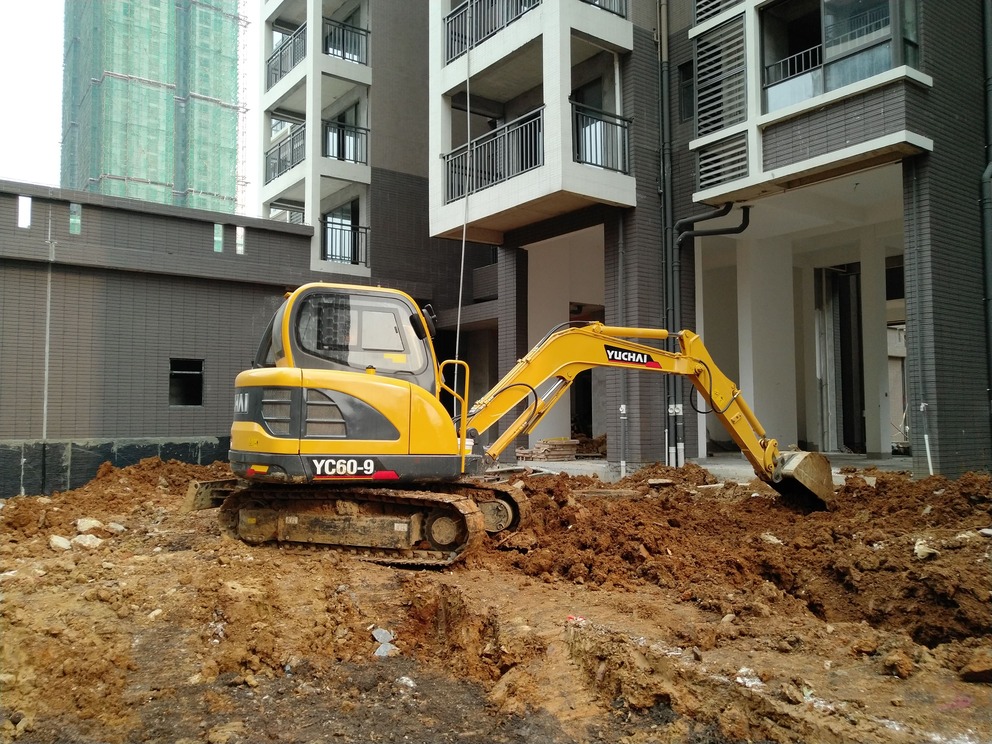

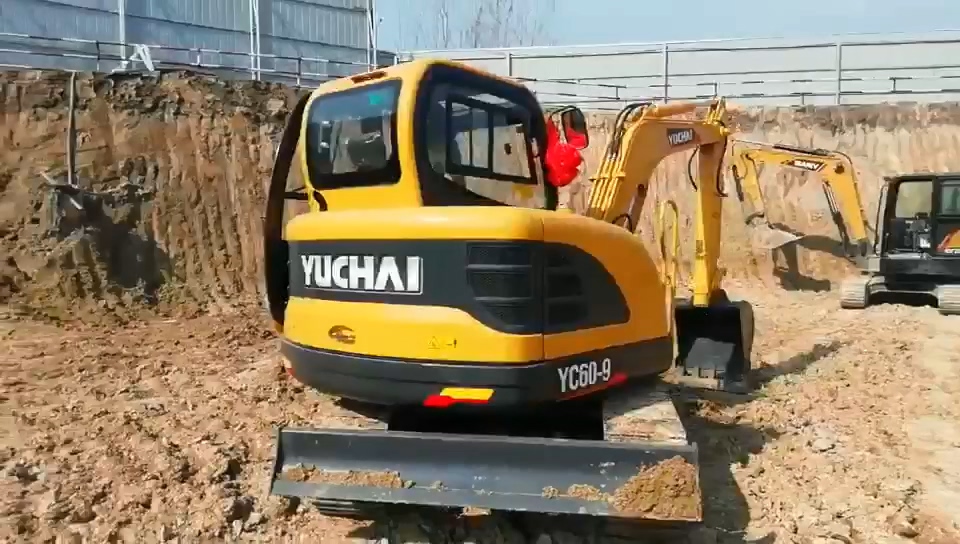

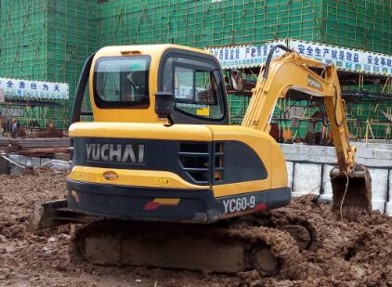

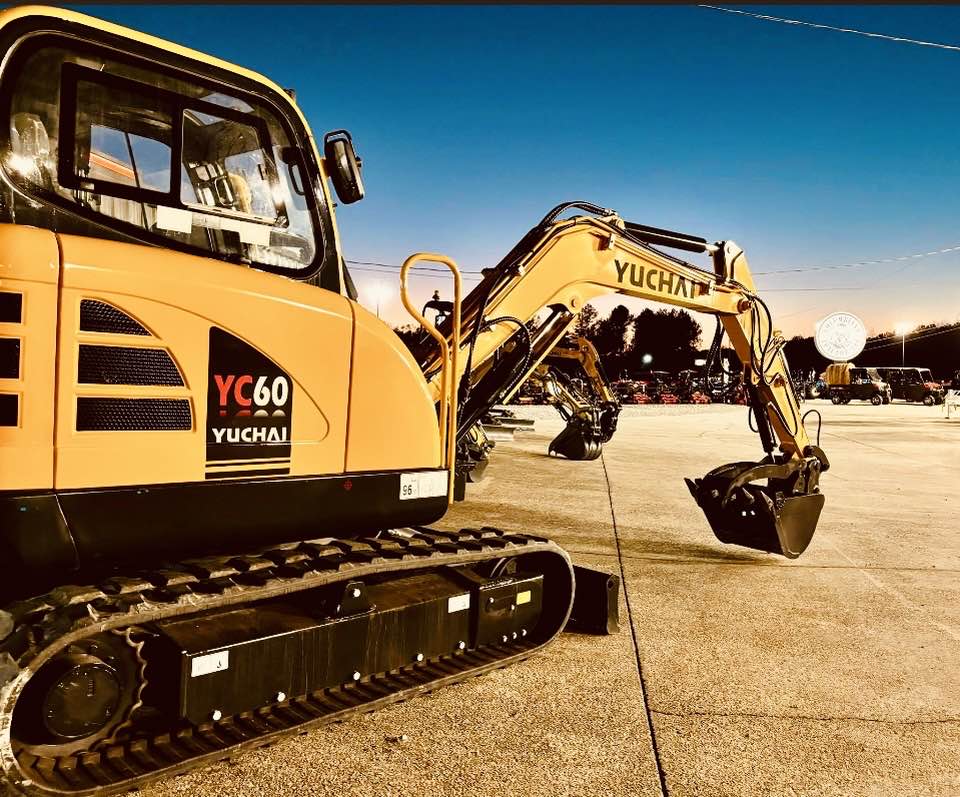

Yuchai YC60 mini excavator

1.Structural Reliability

2.Excellent Performance

3.Fuel saving and high efficiency

4.Brand new large cabin

5.Convenient maintenance

6.Ability to Level Soil Reaches Over 1.5 Meters

Specifications

Features

Excavator Model YC60(new)
Basic parameter
Machine weight kg 6000
Bucket capacity m³ 0.23
Width of bucket mm 775
Performance parameter
Engine model Kubota V2607
Engine power kW/rpm 30.7/2200/35/2200
Max. Gradeability 35°
Max. digging force of arm kN 27.5
Max. digging force of bucket kN 36.6
Traveling speed km/h 3.6/2.2
Max. hauling force kN 46.5
Slewing speed of platform rpm 11~13.5
Operating parameter
Max. digging height mm 5900
Max. digging depth mm 3935
Max. digging radius mm 6520
Max. digging radius on ground level mm 6385
Max. dumping height mm 4030
Min. slewing radius mm 2685
Max. vertical digging depth mm 3370
Max. dozer balde heigh mm
Mzx. dozer blade depth mm
Transportation dimension
Overall length mm 6085
Overall width mm 1962
Overall height mm 2635
Other Parameter
Width of undercarriage mm 1920
Length of track mm 2600
Width of track mm 400
Height between undercarriage and ground mm 335
Height between platform and ground mm 720
Platform tail turning radius mm 1670
Length to center of rollers mm 2060
Fuel tank capacity L 122
Hydraulic oil tank capacity L 77
Track gauge mm 1520
Working Pressure Mpa 25
Ground Contact Pressure kPa
Arm length mm 1699.2
Boom length/strong> mm 3118
Steering head angle ° --
Flow rate L/Min 138.6
