Position： Construction Machinery»Forestry Excavator

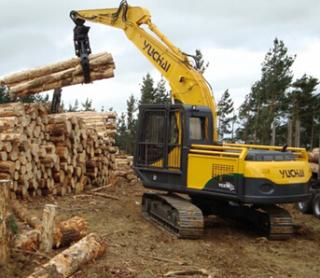

YC230LC-8F Forestry Excavator

YC230LC-8F Forestry Excavator

Powered by Cummins

KYB / Kawasaki Hydraulics

Extra Strong Track Frame

Computer Free

Aux Hydraulics

Forestry Guarding Package Can Include:

- Front/Rear/Left/Right Guarding Options

Specifications

  • P Dimensions

  • Max Length

    9565 mm

  • Machine Height

    3000 mm

  • Overall Width

    2990 mm

  • Width of Platform

    2700 mm

  • Length of Track

    4442 mm

  • Platform Tail Turning

    2777 mm

  • Height Undercarriage to Ground

    510.5 mm

  • Height Platform to Ground

    1107 mm

  • Performance Parameters

  • Engine

    Cummins 6B5.9 Diesel

  • Engine Power

    112 kw @ 2200 rpm

  • Machine Weight

    22360 kg

  • Std Bucket Capacity

    1.05 cub m

  • Std Bucket Width

    1385 mm

  • Operating Hyd Pressure M

    10~31.4 MPa

  • Max Digging Force

    140 kN

  • Gradeability

    70 %

  • Pressure to Ground

    46 Kpa

  • Walking Speed

    4.7 - 5.5 km/hr

  • Max Hauling Force

    200 kN

  • Swing Speed

    11 - 13.5 rpm

  • Range of Operation

  • Max Digging Height

    9680 mm

  • Max Digging Depth

    6645 mm

  • Min Platform Tail Turning Radius

    3430 mm

  • Max Digging Radius

    9935 mm

  • Max Dumping Height

    6770 mm

  • Max Digging Reach Ground Level

    9700 mm
