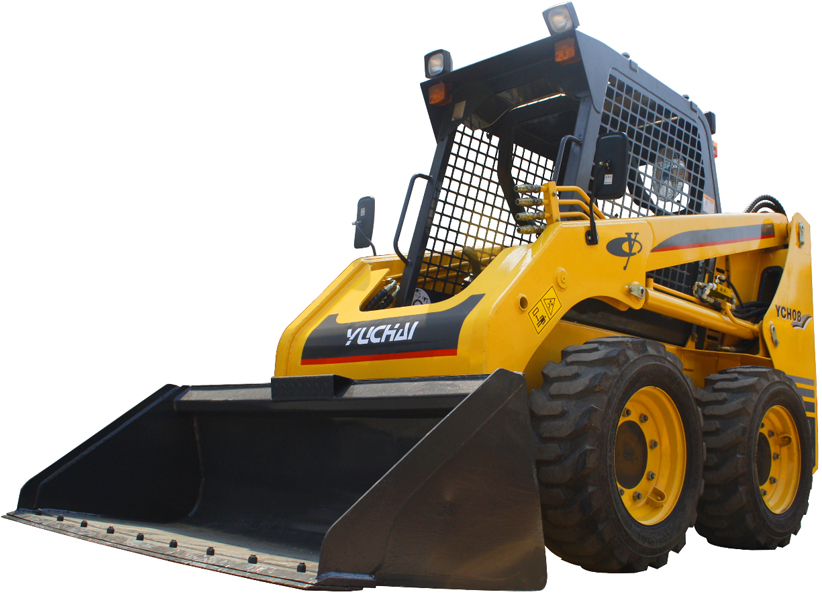

YCH08 Loader

YCH08 Loader

Machine weight:2850kg

Rated load: 800kg

Bucket capacity:0.43m³

Tipping Load:1600kg

Boom lift:5 s

Boom lift/Boom lower/Boom tilt forward:10.5 s

  • Features

  • Overall operating height

    3886mm

  • Height to bucket hinge pin

    3016mm

  • Height to top of cab

    2010mm

  • Height to bottom of level bucket

    2836mm

  • Overall length without attachment

    2564mm

  • Overall length with standard bucket

    3310mm

  • Dumping angle at maximum height

    42°

  • Dumping height

    2306mm

  • Dumping reach

    495mm

  • Rollback of bucket on ground

    25°

  • Rollback of bucket at full height

    94°

  • Wheelbase

    985mm

  • Ground clearance

    205mm

  • Angle of departure

    25°

  • Clearance circle front without bucket

    1135mm

  • Clearance circle front

    1983mm

  • Clearance circle front

    1556mm

  • Rear axle to bumper

    960mm

  • Tread width, centerline to centerline

    1284mm

  • Bucket width

    1680mm

  • Engine

  • Model

    KUBOTA 2403M-T-E3B

  • Rated power

    41.7kw(56HP)@2600r/min

  • Max. Torque

    163.7Nm/1800rpm

  • Cylinder Bore×Stroke

    87×102.4 mm

  • Total Displacement

    2.434L

  • Starter Output

    12-2.0 V-kW

  • Alternator Output

    12-40 V-A

  • Transmission system

  • Type

    Hydrostatic closed circuit

  • Main pumps

    2×Variable displacement Piston pump

  • Motors

    Gerotor motor

  • Transmission

    Chain drive

  • Standard Tires

    10-16.5(L-2B)

  • Hydraulic system

  • Type

    Throttle system

  • Main pumps

    Gear pump

  • Motors

    61.2+22L/min

  • Max. pressure

    235bar

  • Control valve

    3 unit Valve +Bucket Self-level(up only)

  • High flow System

    135~235 bar
