Position: Construction Machinery»Earthmoving Machine

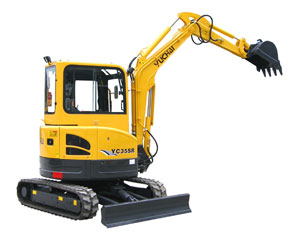

YC35SR Excavator

YUCHAI YC35SR Excavator

Weight: 3860kg

Engine:  Kubota V2403

Rated power: 31.2kW/2200rpm (41.81hp/2200rpm)

Standard bucket capacity:0.12m3(4.24cu.ft.)

Standard bucket wide: 640mm (2'1''in)

Specifications

Features

  • Principle Dimension

  • Overall Length (trans pos)

    4650mm(15'3''in)

  • Overall Height (trans pos)

    2550mm(8'4''in)

  • Width of Undercarriage

    1800mm (5'11''in)

  • Width Of Track

    300mm(1'in)

  • Maximum Platform Tail Turning Radius

     900mm(2'11''in)

  • Length Of Track

      2100mm(6'11''in)

  • Sprocket To Idler Centres

    1620mm(5'4''in)

  • Dist. Between Undercarriage And Ground

    247mm(9.72inch)

  • Dist.Between Boom And Ground

    1580mm(0.8'in)

  • Width Of Platform

    1696mm(5'7''in)

  • Dist. Between Hood and Ground

    1425mm

  • Dist. Between Platform And Ground

    570mm(22.44inch)

  • Characteristic

  • Operation Hydraulic Pressure

    21Mpa (3045PSI)

  • Maximum Digging Force

      ≥25.7KN  (5779)

  • Maximum Gradeadility

    ≥58%(30°)

  • Travelling Speed

    3.5~4.5 km/h (2.2~2.8mph)

  • Maximum traction

    29KN  (6521lbs)

  • Swing Speed of Platform

    11~13rpm

  • Variable displacement pump capacity

    20.8+20.8+7+3.5(0.0046+0.0046+0.0015+0.0008gallon/r)

  • Operating Envelope

  • Maximum Digging Height

    5100mm(16'9''in)

  • Maximum Dumping Height

    3630mm(11'11''in)

  • Maximum Digging Depth

    3120mm(10'3''in)

  • Maximum Digging Radius

    5460mm(17'11''in)

  • Maximum Depth For Bulldozing

    5340mm(17'6''in)

  • Maximum Height Digging Radius

    2948mm(9'8''in)

  • Maximum Platform Tail Turning Radius

    2210mm(7'3''in)

  • Maximum Depth for Bulldozing

    450mm(1'6''in)

  • Maximum Height for Bulldozing

    389mm(1'3''in)

  • Maximum Digging Force

    25.7KN
