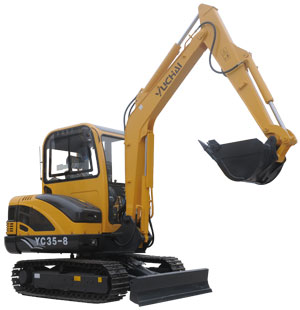

Principle Dimension

Overall Length (trans pos)

4950mm(16'24''in)

Overall Height (trans pos)

2470mm(8'1''in)

Width of Undercarriage

1618mm(5'30''in)

Width Of Track

300mm(1'in)

Maximum Platform Tail Turning Radius

  1515mm(4'12''in)

Length Of Track

  2100mm(6'11''in)

Sprocket To Idler Centres

1620mm(5'4''in)

Dist. Between Undercarriage And Ground

267mm(0.9'in)

Dist.Between Boom And Ground

1698mm(5'7''in)

Width Of Platform

1494mm(4'11''in)

Dist. Between Platform And Ground

570mm(1'10''in)

Characteristic

Operation Hydraulic Pressure

21Mpa (3045)

Maximum Digging Force

  ≥22.19  (4990lbs)

Maximum Gradeadility

≥58%(30°)

Travelling Speed

3.4~4.8 km/h   (2.1~3mph)

Maximum traction

29KN  (6521lbs)

Swing Speed of Platform

11~13rpm

Variable displacement pump capacity

20.8+20.8+7+3.5ml/r (0.0046+0.0046+0.0015+0.0008gallon/r)

Fixed displacement pump capacity

Swing Angularity of the Digging Arm(left/right)

No or 80°/50°

Operating Envelope

Maximum Digging Height

5200mm(17'1''in)

Maximum Dumping Height

3680mm(12'1''in)

Maximum Digging Depth

3535mm(11'7''in)

Maximum Digging Radius

5590mm(18'4''in)

Maximum Depth For Bulldozing

5520mm(18'1''in)

Maximum Height Digging Radius

3265mm(10'8''in)

Maximum Platform Tail Turning Radius

1990mm(6'6''in)

Maximum Depth for Bulldozing

433mm(1'5''in)

Maximum Height for Bulldozing

250mm(0.8'in)
