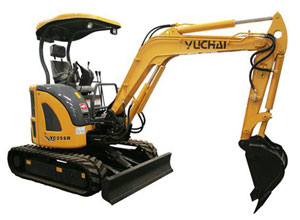

Principle Dimension

Overall Length (trans pos)

4430mm(14'6''in)

Overall Height (trans pos)

2530mm (8'4''in)

Width of Undercarriage

1550mm(5'1''in)

Width Of Track

300mm (1'in)

Maximum Platform Tail Turning Radius

  775mm(2'6''in)

Length Of Track

1980mm (6'6''in)

Sprocket To Idler Centres

1500mm(59.06inch)

Dist. Between Undercarriage And Ground

281mm(11.06inch)

Dist.Between Boom And Ground

1404mm  (4'7''in)

Width Of Platform

1550mm (14'11''in)

Dist. Between Platform And Ground

566mm (1'10''in)

Characteristic

Operation Hydraulic Pressure

20.6 Mpa(2987PSI)

Maximum Digging Force

  21.5KN (4835lbs)

Maximum Gradeadility

≥58%(30°)

Travelling Speed

2.6~4.1 km/h (1.6~2.5mph)

Maximum traction

28.1KN  (6319lbs)

Swing Speed of Platform

10.8rpm

Variable displacement pump capacity

16.1+16.1+7+3.5ml/r (0.0035+0.0035+0.0015+0.0008gallon/r)

Fixed displacement pump capacity

Swing Angularity of the Digging Arm(left/right)

50°/80°

Operating Envelope

Maximum Digging Height

4420mm(14'6''in)

Maximum Dumping Height

2970mm(9'9''in)

Maximum Digging Depth

2630mm(8'7''in)

Maximum Digging Radius

4930mm(16'2''in)

Maximum Depth For Bulldozing

4560mm(14'11''in)

Maximum Height Digging Radius

3040mm(9'12''in)

Maximum Platform Tail Turning Radius

1918mm(6'3''in)

Maximum Depth for Bulldozing

372mm(1'3''in)

Maximum Height for Bulldozing

254mm(0.8'in)
