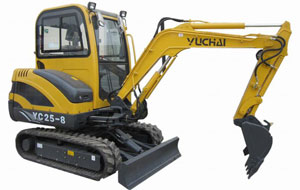

Principle Dimension

Overall Length (trans pos)

4510mm(14'9''in)

Overall Height (trans pos)

Canopy: 2395mm;Cabina: 2465mm

Width of Undercarriage

1450mm (4'9''in)

Width Of Track

300 mm (Rubber/Steel)(1'in)

Length Of Track

1935mm (6'4''in)

Dist. Between Undercarriage And Ground

270mm (0.9'in)

Width Of Platform

1444mm(4'9''in)

Dist. Between Platform And Ground

555mm (1'10''in)

Maximum Platform Tail Turning Radius

1345mm (4'5''in)

Characteristic

Operation Hydraulic Pressure

21Mpa (3045PSI)

Maximum Digging Force

  ≥17.5 KN (3935)

Maximum Gradeadility

≥58%(30°)

Travelling Speed

2.4~4.2 km/h (1.5~2.6mph)

Maximum traction

28.2KN  (6341lbs)

Swing Speed of Platform

11~12.5rpm

Variable displacement pump capacity

12.1+12.1+7+3.5ml/r (0.0027+0.0027+0.0015+0.0008gallon/r)

Fixed displacement pump capacity

4.5+4.5ml/r(0.001+0.001gallon/r)

Swing Angularity of the Digging Arm(left/right)

80°/50°

Operating Envelope

Maximum Digging Height

3360mm(11'in)

Maximum Dumping Height

2330mm(7'8''in)

Maximum Digging Depth

2105mm(6'11''in)

Maximum Digging Radius

4060mm(13'4''in)

Maximum Digging Dist.of Ground

4180mm(13'8''in)

Maximum Height Digging Radius

2765mm(9'1''in)

Maximum Platform Tail Turning Radius

1860mm(6'1''in)

Maximum Depth for Bulldozing

163mm(0.5'in)

Maximum Height for Bulldozing

247mm(0.8'in)
