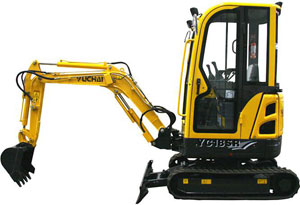

Principle Dimension

Overall Length (trans pos)

3835mm(12'7''in)

Overall Height (trans pos)

2350mm(7'8''in)

Width of Undercarriage

1080~1400mm(3'6''~4'7''in)

Width Of Track

230mm(0.8'in)

Length Of Track

1628mm(5'4''in)

Dist. Between Undercarriage And Ground

156mm(0.5'in)

Width Of Platform

1060mm(3'6''in)

Dist. Between Platform And Ground

478mm(1'7''in)

Maximum Platform Tail Turning Radius

700mm(2'4''in)

Characteristic

Operation Hydraulic Pressure

20.6Mpa (2987)

Maximum Digging Force

  ≥14.3KN  (3216lbs)

Maximum Gradeadility

≥58%(30°)

Travelling Speed

3 km/h (1.9mph)

Maximum traction

14.6KN  (3283lbs)

Swing Speed of Platform

11rpm

Variable displacement pump capacity

8.5+8.5+6.7+2.7ml/r (0.0019+0.0019+0.0015+0.0006gallon/r)

Fixed displacement pump capacity

Swing Angularity of the Digging Arm(left/right)

50°/70°

Operating Envelope

Maximum Digging Height

3360mm(11'in)

Maximum Dumping Height

2330mm(7'8''in)

Maximum Digging Depth

2105mm(6'11''in)

Maximum Digging Radius

4060mm(13'4''in)

Maximum Digging Dist.of Ground

4180mm(13'8''in)

Maximum Height Digging Radius

2765mm(9'1''in)

Maximum Platform Tail Turning Radius

1860mm(6'1''in)

Maximum Depth for Bulldozing

163mm(0.5'in)

Maximum Height for Bulldozing

247mm(0.8'in)
