Position： Construction Machinery»Earthmoving Machine

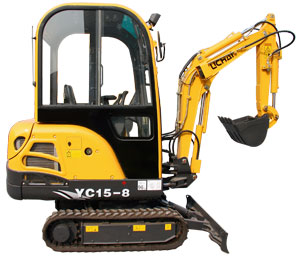

YC15-8 Excavator

YUCHAI YC15-8 Excavator

Weight： 1625kg Canopy/1725kg Cabin（3582lbs Canopy/3803lbs Cabin）

Rated power：14.7KW/2200rpm(19.7hp/2200rpm)(Perkins)

14.2KW/2200rpm(19.03hp/2200rpm)((Kubota)

Standard bucket capacity：0.04m3（1.41cu.ft.）

Standard bucket wide：400mm(1'4''in)

Specifications

Features

  • Principle Dimension

  • Overall Length (trans pos)

    3670mm

  • Overall Height (trans pos)

    2245Canopy, 2310 Cabin

  • Width of Undercarriage

    980mm

  • Width Of Track

    230mm

  • Length Of Track

    1405mm

  • Dist. Between Undercarriage And Ground

    188mm

  • Width Of Platform

    1010mm

  • Dist. Between Platform And Ground

    414/453mm ext.chassis

  • Maximum Platform Tail Turning Radius

    1193mm

  • Dist. Between Boom And Ground

    1050mm

  • Sprocket To Idler Centres

    1045mm

  • Characteristic

  • Operation Hydraulic Pressure

    16Mpa(2320PSI)

  • Maximum Digging Force

      ≥11 KN  (2474lbs)

  • Maximum Gradeadility

    ≥58%(30°)

  • Travelling Speed

    ≥2 km/h (1.2mph)

  • Maximum traction

    8.8 KN (1979lbs)

  • Swing Speed of Platform

    10~12rpm

  • Variable displacement pump capacity


  • Fixed displacement pump capacity

    8.2+8.2+3.2ml/r(0.0018+0.0018+0.0007gallon/r)

  • Swing Angularity of the Digging Arm(left/right)

    60°/48°

  • Operating Envelope

  • Maximum Digging Height

    2910mm(9'6''in)

  • Maximum Dumping Height

    2050mm(6'9''in)

  • Maximum Digging Depth

    1800mm(5'11''in)

  • Maximum Digging Radius

    3520mm(11'6''in)

  • Maximum Digging Dist.of Ground

    3451mm(11'4''in)

  • Maximum Height Digging Radius

    2650mm(8'8''in)

  • Maximum Platform Tail Turning Radius

    1700mm(5'7''in)

  • Maximum Depth for Bulldozing

    166mm(0.5'in)

  • Maximum Height for Bulldozing

    201mm(0.7'in)
