Position: Construction Machinery»Earthmoving Machine

YC08-8 Excavator

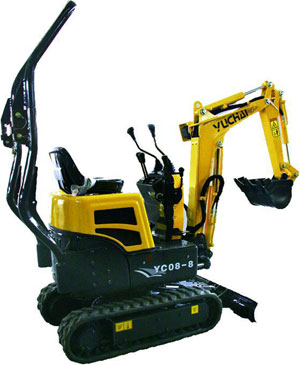

YUCHAI YC08-8 Excavator

Weight:1030kg (2094lbs)

Engine: Yanmar2TNV70

Rated power:7.5KW/2400rpm(10.05hp/2400rpm)

Standard bucket capacity:0.02m3(0.88cu.ft.)

Standard bucket wide:400mm(1'4''in)

Specifications

Features

  • Principle Dimension

  • Overall Length (trans pos)

    2800mm(9'2''in)

  • Overall Height (trans pos)

    2300mm(7'6''in)

  • Width of Undercarriage

    930mm(3'1''in)

  • Width Of Track

    180mm(0.6'in)

  • Length Of Track

    1213mm(3'12''in)

  • Dist. Between Undercarriage And Ground

    165.5mm(0.5'in)

  • Width Of Platform

    730mm (2'5''in)

  • Dist. Between Platform And Ground

    422mm(1'5''in)

  • Maximum Platform Tail Turning Radius

    702mm (2'4''in)

  • Characteristic

  • Operation Hydraulic Pressure

    16Mpa(2320PSI)

  • Maximum Digging Force

    ≥8KN  (1799lbs)

  • Maximum Gradeadility

    ≥58%(30°)

  • Travelling Speed

    1.6~2.6km/h(1.6~1.7mph)

  • Maximum traction

    7.6KN  (1709lbs)

  • Swing Speed of Platform

    9rpm

  • Variable displacement pump capacity


  • Fixed displacement pump capacity

    4.5+4.5ml/r(0.001+0.001gallon/r)

  • Swing Angularity of the Digging Arm(left/right)

    75°/50°

  • Operating Envelope

  • Maximum Digging Height

    2373mm(8'12''in)

  • Maximum Dumping Height

    1951mm(6'5''in)

  • Maximum Digging Depth

    1415mm(4'8''in)

  • Maximum Digging Radius

    2831mm(9'3''in)

  • Maximum Digging Dist.of Ground

    2726mm(8'11''in)

  • Maximum Height Digging Radius

    1527mm(5'in)

  • Maximum Platform Tail Turning Radius

    1248mm(4'1''in)

  • Maximum Depth for Bulldozing

    267mm(0.9'in)

  • Maximum Height for Bulldozing

    231mm(0.8'in)

  • Maximum Digging Force

    9.3KN
